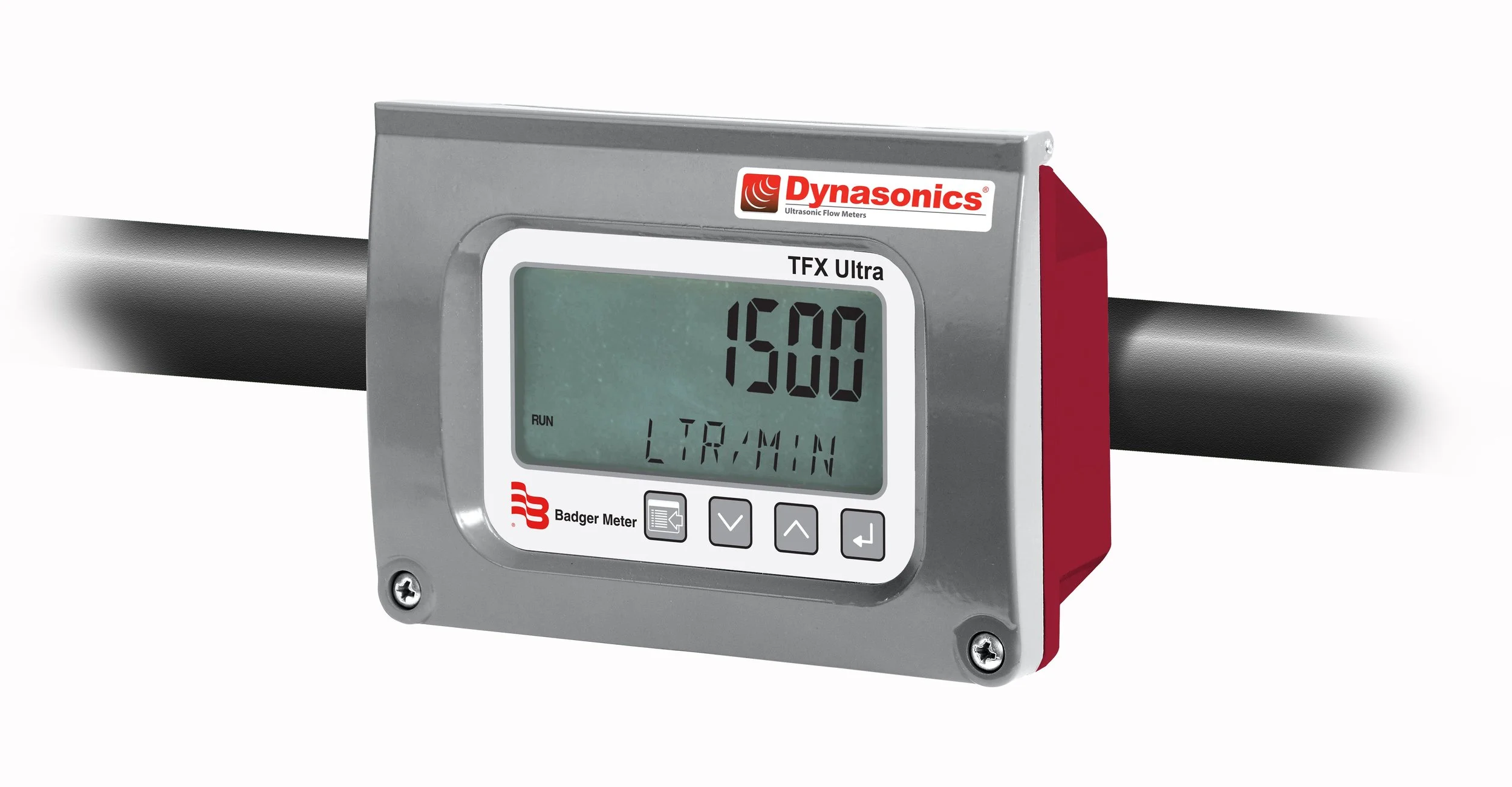

TFX Ultra: Clamp-on Ultrasonic Flow and Energy Meter

The TFX Ultra-clamp-on ultrasonic flow and energy meter provides accurate and repeatable liquid flow measurement for full pipes one-half inch or larger.

Built for non-intrusive flow and energy measurement applications, the meter attaches to the outside of the pipe and does not contact the liquid being measured.

The clamp-on design allows quick and low-cost installation, and eliminates worries of fluid compatibility and pressure head loss.

With no moving parts, there is no mechanical wear, so repair kits or replacement parts are not needed.

Ultrasonic Flow Meters (Transit Time) - DTFX / DTTN

Featured
Dynasonics Badger Meter Warranty & Support

PRODUCTS
This warranty shall apply to Badger Meter Equipment and Parts (“Product(s)”) sold on or after August 1, 2014. This warranty is extended only to commercial users and authorized Badger Meter, Inc. distributors, hereafter referred to as “Customer,” and does NOT apply to consumers.

MATERIALS AND WORKMANSHIP
Badger Meter warrants Product to be free from defects in materials and workmanship appearing within the earlier of either: one (1) year after installation; or one (1) year and six (6) months after shipment from Badger Meter.

PRODUCT RETURNS
Product failures must be proven and verified to the satisfaction of Badger Meter. The obligation of Badger Meter hereunder shall be limited to such repair and replacement and shall be conditioned upon Badger Meter receiving written notice of any alleged defect within ten (10) days after its discovery. This exclusive remedy shall not be deemed to have failed its essential purpose so long as Badger Meter is willing and able to replace defective Product to Customer within a reasonable time after receipt of proof that a defect is involved. Product returns must be shipped by the Customer prepaid F.O.B. to the nearest Badger Meter factory or distribution center. The Customer shall be responsible for all direct and indirect costs associated with removing original Product and reinstalling the repaired or replacement Product.

LIMITS OF LIABILITY
This warranty shall not apply to Product repaired or altered by any party other than Badger Meter. The foregoing warranty applies only to the extent that the Product is installed, serviced and operated strictly in accordance with instructions from Badger Meter. The warranty shall not apply and shall be void with respect to Product exposed to conditions other than those detailed in Product technical literature, or which have been subject to vandalism, negligence, accident, acts of God, improper installation, operation or repair, alteration, or other circumstances which are beyond the reasonable control of Badger Meter. With respect to equipment and parts not manufactured by Badger Meter, the warranty obligations of Badger Meter shall in all respects conform and be limited to the warranty extended to Badger Meter by the supplier.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE (except warranties of title).

Any description of the Product, whether in writing or made orally by Badger Meter or agents of Badger Meter, specifications, samples, models, bulletins, drawings, diagrams, engineering sheets or similar materials used in connection with any order from the Customer are for the sole purpose of identifying the Product and shall not be construed as an express warranty. Any suggestions by Badger Meter or agents of Badger Meter regarding use, application or suitability of the Product shall not be construed as an express warranty unless confirmed to be such in writing by Badger Meter.

Exclusion of Consequential Damages and Disclaimer of Other Liability

The liability of Badger Meter with respect to breaches of the foregoing warranty shall be limited as stated herein. The liability of Badger Meter shall in no event exceed the contract price.

BADGER METER SHALL NOT BE SUBJECT TO AND DISCLAIMS:
(1) ANY OTHER OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR OF WARRANTY, (2) ANY OBLIGATIONS WHATSOEVER ARISING FROM TORT CLAIMS (INCLUDING NEGLIGENCE AND STRICT LIABILITY) OR ARISING UNDER OTHER THEORIES OF LAW WITH RESPECT TO PRODUCTS SOLD OR SERVICES RENDERED BY BADGER METER, OR ANY UNDERTAKINGS, ACTS OR OMISSIONS RELATING THERETO, AND (3) ALL CONSEQUENTIAL,INCIDENTAL, AND CONTINGENT DAMAGES WHATSOEVER.

1 Year Flow Instrumentation Product Warranty (INC-WR-00547-EN)

Technical Support

Chat with us or call (502) 266-6640.

Technical Details

  • Measurement type: ultrasonic bi-directional flow measurement
  • Liquid types: liquids with small amounts of suspended solids or aeration Ultrapure Liquids to Liquids with small amounts of suspended solids or aeration
  • Accuracy: +/- 1% of reading
  • Repeatability: +/- 0.5% of reading
  • Available protocols: Modbus RTU over RS485 communications, and Ethernet connection including BACnet/IP, Ethernet/IP and Modbus TCP/IP
  • Piping/tubing sizes: ½ inch (12 mm) and above
  • Configurations: flow meter or energy meter
  • Measures energy usage in Btu, mBtu, tons, KJ, kW and mW Add MMBTU

Product Information

Typical Applications

  • water & wastewater
  • sewage
  • HVAC/energy monitoring
  • power generation
  • mining
  • semiconductor
  • food & beverage
  • flow system commissioning and troubleshooting

Operating Principle

Transit time flow meters utilize two transducers which function as both ultrasonic transmitters and receivers. The flow meters operate by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers. The burst is first transmitted in the direction of fluid flow and then against fluid flow. Since sound energy in a moving liquid is carried faster when it travels in the direction of fluid flow (downstream) than it does when it travels against fluid flow (upstream), a differential in the times of flight will occur. The sound's time of flight is accurately measured in both directions and the difference in time of flight calculated. The liquid velocity (V) inside the pipe can be related to the difference in time of flight (dt) through the following equation: V = K * D * dt, where K is a constant and D is the distance between the transducers

The TFX family of transit time flow meters is equipped with either two transducers that are clamped on the outside of a closed pipe at a specific distance from each other or a single clamp-around design.  For applications that use two transducers, the transducers can be mounted in V-Mount where the sound transverses the pipe two times, W-Mount where the sound transverses the pipe four times, or in Z-Mount where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once.
