Ultrasonic Flow Meter (Transit Time) - DTFXL / DTTN

/

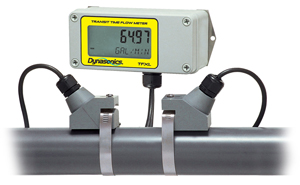

The TFXL clamp-on transit time ultrasonic flow meter attaches to the outside of pipes and is designed to replace mechanical flow meters in applications where liquid conditions tend to damage or impede mechanical flow meter operation.

  • Measures liquids with small amounts of suspended solids or aeration (e.g., surface water, sewage).
  • Bi-directional flow measurement system. Totalizer options include forward, reverse and net total.
  • ULTRALINK software utility enables in-field flow meter configuration, calibration and troubleshooting, via laptop PC.
  • Compact enclosure uses large, easy-to-read digital display.

Ultrasonic Flow Meter (Transit Time) - DTFXL / DTTN

Featured
Dynasonics Badger Meter Warranty & Support

PRODUCTS
This warranty shall apply to Badger Meter Equipment and Parts (“Product(s)”) sold on or after August 1, 2014. This warranty is extended only to commercial users and authorized Badger Meter, Inc. distributors, hereafter referred to as “Customer,” and does NOT apply to consumers.

MATERIALS AND WORKMANSHIP
Badger Meter warrants Product to be free from defects in materials and workmanship appearing within the earlier of either: one (1) year after installation; or one (1) year and six (6) months after shipment from Badger Meter.

PRODUCT RETURNS
Product failures must be proven and verified to the satisfaction of Badger Meter. The obligation of Badger Meter hereunder shall be limited to such repair and replacement and shall be conditioned upon Badger Meter receiving written notice of any alleged defect within ten (10) days after its discovery. This exclusive remedy shall not be deemed to have failed its essential purpose so long as Badger Meter is willing and able to replace defective Product to Customer within a reasonable time after receipt of proof that a defect is involved. Product returns must be shipped by the Customer prepaid F.O.B. to the nearest Badger Meter factory or distribution center. The Customer shall be responsible for all direct and indirect costs associated with removing original Product and reinstalling the repaired or replacement Product.

LIMITS OF LIABILITY
This warranty shall not apply to Product repaired or altered by any party other than Badger Meter. The foregoing warranty applies only to the extent that the Product is installed, serviced and operated strictly in accordance with instructions from Badger Meter. The warranty shall not apply and shall be void with respect to Product exposed to conditions other than those detailed in Product technical literature, or which have been subject to vandalism, negligence, accident, acts of God, improper installation, operation or repair, alteration, or other circumstances which are beyond the reasonable control of Badger Meter. With respect to equipment and parts not manufactured by Badger Meter, the warranty obligations of Badger Meter shall in all respects conform and be limited to the warranty extended to Badger Meter by the supplier.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE (except warranties of title).

Any description of the Product, whether in writing or made orally by Badger Meter or agents of Badger Meter, specifications, samples, models, bulletins, drawings, diagrams, engineering sheets or similar materials used in connection with any order from the Customer are for the sole purpose of identifying the Product and shall not be construed as an express warranty. Any suggestions by Badger Meter or agents of Badger Meter regarding use, application or suitability of the Product shall not be construed as an express warranty unless confirmed to be such in writing by Badger Meter.

Exclusion of Consequential Damages and Disclaimer of Other Liability

The liability of Badger Meter with respect to breaches of the foregoing warranty shall be limited as stated herein. The liability of Badger Meter shall in no event exceed the contract price.

BADGER METER SHALL NOT BE SUBJECT TO AND DISCLAIMS:
(1) ANY OTHER OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR OF WARRANTY, (2) ANY OBLIGATIONS WHATSOEVER ARISING FROM TORT CLAIMS (INCLUDING NEGLIGENCE AND STRICT LIABILITY) OR ARISING UNDER OTHER THEORIES OF LAW WITH RESPECT TO PRODUCTS SOLD OR SERVICES RENDERED BY BADGER METER, OR ANY UNDERTAKINGS, ACTS OR OMISSIONS RELATING THERETO, AND (3) ALL CONSEQUENTIAL,INCIDENTAL, AND CONTINGENT DAMAGES WHATSOEVER.

1 Year Flow Instrumentation Product Warranty (INC-WR-00547-EN)

Technical Support

Chat with us or call (502) 266-6640.

Technical Details

  • 11-28 VDC @ 0.25A
  • 0.1 to 40 FPS (0.03 to 12 MPS)
  • 4-20mA standard output or TTL (pulse or simulated turbine meter)
  • -40 to 185°F (-40 to 85°C) ambient temp
  • 0 to 105°F (-20 to 40°C) hazardous locations integral mount
  • ±0.5% of reading repeatability
  • 0.3 to 30 seconds adjustable response time
  • UltraLink software utility
  • Bi-directional flow measurement system
  • UL 61010-1 & CSA C22.2 No. 61010-1
  • Class I Div. 2 Groups C & D
  • T4 to UL 1604 & CSA 22.2 No. 213

Product Information


The Dynasonics TFXL ultrasonic flow meter clamps onto the outside of a pipe and does not contact the internal liquid. This non-invasive system allows solids to pass through the pipe with no effect on the flow meter. Y-strainers or filtering devices are not needed. In addition, installation of the Dynasonics TFXL ultrasonic flow meter is easy and low cost.

The Dynasonics TFXL ultrasonic flow meter provides instantaneous rate and accumulated flows along with 4-20mA and pulse outputs. Available with or without a local display, the Dynasonics TFXL ultrasonic flow meter is housed in an enclosure suitable for outdoor mounting. Compact integral mount systems can accommodate pipes 2 inches [50 mm] and smaller. For additional flexibility, remote mount systems are available for pipe sizes 1/2 inch [12 mm] and higher. A software utility is available for customer configuration and in-field calibration.

Greater accuracy can be attained in applications with high levels of entrained gases. The Dynasonics TFXL ultrasonic flow meter will automatically correct displayed flow rates and electronic outputs.

The inherent advantages of the Dynasonics TFXL ultrasonic flow meter over competitive technologies include ease of installation, immunity to suspended solids and gas pockets, and a large bi-directional measuring range. In addition, the non-contact design eliminates any fluid compatibility issues. The Dynasonics TFXL ultrasonic flow meter was designed to replace mechanical flow meters in applications where liquid conditions tend to damage or impede mechanical flow meter operation. No maintenance of the Dynasonics TFXL ultrasonic flow meter is required.

Operating Principle

Transit time flow meters utilize two transducers which function as both ultrasonic transmitters and receivers. The flow meters operate by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers. The burst is first transmitted in the direction of fluid flow and then against fluid flow. Since sound energy in a moving liquid is carried faster when it travels in the direction of fluid flow (downstream) than it does when it travels against fluid flow (upstream), a differential in the times of flight will occur. The sound's time of flight is accurately measured in both directions and the difference in time of flight calculated. The liquid velocity (V) inside the pipe can be related to the difference in time of flight (dt) through the following equation: V = KDdt, where K is a constant and D is the distance between the transducers.
