Inline Mass Flow Meter with Flow Conditioner - FlatTrak™ 780S

/

The FlatTrak™ 780S offers improved measurement capabilities in installations where long straight pipe runs are not available. The meter incorporates Sierra’s unique dual-plate flow conditioning element to eliminate velocity profile distortions as well as swirl and temperature stratification in the gas stream. This product reduces piping straight run requirements to as little as three upstream diameters. As a result, you save money on installation costs when compared to an orifice-plate where at least 20 upstream piping diameters are required for optimal performance.

  • 316SS construction
  • Range of process connections
  • Field Validation/Configuration
  • +/- 1% of reading accuracy
  • Very large installed base

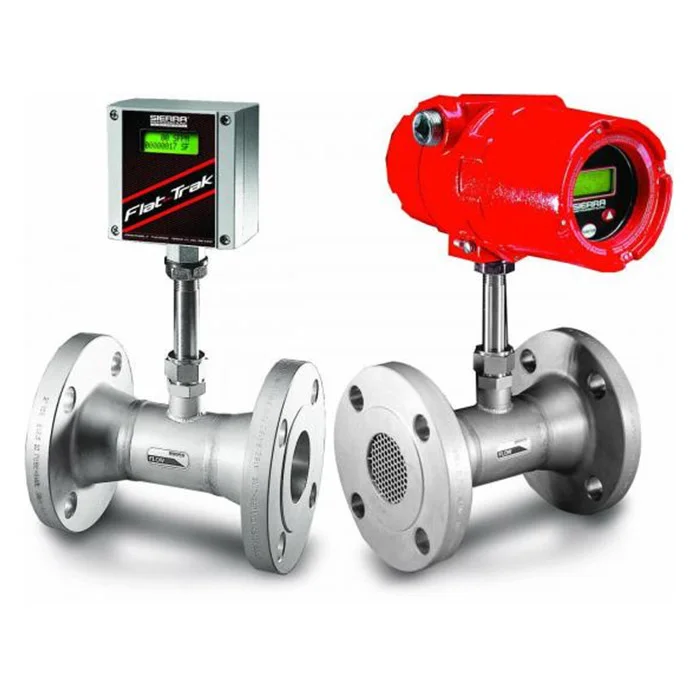

FlatTrak™ 780S In-line Mass Flow Meter with Flow Conditioner

FlatTrak™ 780S In-line Mass Flow Meter with Flow Conditioner


Featured
Sierra Instruments Warranty & Support

Limited Warranty - Product - Liability for Repair and Replacement Only

All Sierra products are warranted to be free from defects in material and workmanship and will be repaired or replaced at no charge to Buyer, provided return or rejection of product is made within a reasonable period but no longer than one (1) year for calibration and non-calibration defects, from date of delivery. To assure warranty service, customers must register their products online on Sierra’s website. Online registration of all of your Sierra products is required for our warranty process. Register now at http://www.sierrainstruments.com/register.

This warranty does not cover any damage or discoloration caused by corrosion due to gases, liquids, or any other source, nor does it cover normal wear of any seals in its products and with gases other than air, or unless otherwise specified in the contract. Such returns are contingent on Sierra's examination and reasonable satisfaction that any defects are covered by this warranty and that the Buyer has not returned the equipment in a damaged condition, due to any negligence, tampering, misapplication or product modification on the part of the Buyer or his agents. Sierra shall not be liable for installation charges, for expenses of Buyer for repairs or replacement, for damages from delay or loss of use, or other indirect or consequential damages of any kind.

Sierra extends this warranty only to Sierra products properly used and properly installed for the particular application for which intended and quoted, and this warranty does not cover products which have been modified without Sierra's approval or which have been subjected to unusual physical or electrical stress, alteration, or tampering, or upon which the original identification marks have been removed or altered. Whenever the design of the equipment to be furnished or the system in which it is to be incorporated originates with the Buyer, Sierra's warranty is limited specifically to matters relating to furnishing Sierra equipment free of defects in materials and workmanship and Sierra assumes no responsibility for implied warranties of fitness for purpose or use. Any replacement or repair shall be to Sierra's factory, unless otherwise directed. No items shall be returned for warranty repair without prior written authorization from Sierra.

Note: Sierra’s InnovaSwitch™ Flow Level Switches come with a two (2) year warranty with the above stipulations.

Lifetime Limited Warranty on Patented DrySense™ Sensor Technology

In addition to Sierra’s standard one (1) year manufacturing warranty on all instruments produced, Sierra also offers a lifetime warranty on all DrySense™ sensors standard with Sierra models 640i, 780i, 640S, 780S, and 670S instruments sold after January 1, 2010.  This warranty does not extend to the Model 620S, the BoilerTrak™, the HT (High Temperature) 640S/780S sensor or the 780S UHP (Ultra High Purity) sensors. To assure warranty service, customers must register their products online on Sierra’s website. Online registration of all of your Sierra products is required for our warranty process. Register now.

Download Sierra Products Warranty Statement

Download Terms and Conditions

2 Year Warranty Coverage for Flow Switches

Sierra offers a two (2) year warranty coverage for our entire line of InnovaSwitch™ Flow Level Switches beginning July 1, 2010.

Technical Support

Chat with us or call (502) 266-6640.

Technical Details

  • 316SS construction
  • Range of process connections
  • Field Validation/Configuration
  • +/- 1% of reading accuracy
  • Very large installed base
  • Removable probe for recal/service
  • In-line flow conditioning
  • Meters all process gases
  • Digital communications solutions include: Foundation Fieldbus, HART, Modbus RTU, and Profibus DP.

Product Information

The FlatTrak™ 780S offers improved measurement capabilities in installations where long straight pipe runs are not available. The meter incorporates Sierra’s unique dual-plate flow conditioning element to eliminate velocity profile distortions as well as swirl and temperature stratification in the gas stream. This product reduces piping straight run requirements to as little as three upstream diameters. As a result, you save money on installation costs when compared to an orifice-plate where at least 20 upstream piping diameters are required for optimal performance.

This meter features Sierra's well known Smart Electronics Package (SIP) for field-rangability, field flow-range adjustment, and field validation and diagnostics. The 780S has very low pressure drop, and wide turndown. The FlatTrak™ 780S is hazardous area approved by CSA and CRN (Canada), FM (USA), ATEX, CE and PED (EU), IEC Ex (Australia), GOST R (Russian Federation) and Chinese Pattern Approval (China). The 780S is available in pipe sizes from 1/4-inch to 8-inches in a choice of NPT, Buttweld or ANSI 150 lb. flanged design (300 lb. flanges optional). Larger sizes are available upon request. Meter accuracy is +/ 1% of reading plus +/-0.5% of full scale with repeatability of +/- 0.2% of full scale.

Sierra’s digital communications solutions offer engineers and systems integrators, full industrial system integration and networking capability with Sierra's thermal mass flow meters. Digital communications solutions include: Foundation Fieldbus, HART, Modbus RTU, and Profibus DP. This flexibility of communication features offers turnkey solutions for integration of Sierra's thermal mass flow meters into any industrial automation system or application.

Sierra has certified the 780S thermal mass flow meter for Greenhouse Gas (GHG) measurement meeting all requirements defined by the EPA (40 CFR Part 98). This product is optimized for highly accurate and repeatable mass flow measurement of methane (CH4) as well as N20, SF6, HFC’s, PFC’s and CO2 as called out in the EPA mandate. Sierra has long supplied its 780S to gas and electrical producers around the world. With its built-in Dual-Plate flow conditioning element, the 780S is an ideal meter for measuring gas flow in cramped or constrained piping environments where long straight pipe runs simply do not exist. The 780S is routinely used by gas and power plants to measure methane to compressors, pre-heaters, boilers and other process equipment.

Operating Principle

Sierra’s unique Steel-Trak™ sensor probe is responsible for the unsurpassed accuracy, ruggedness and reliability of Sierra industrial flow meters. The immersible Steel-Trak sensor consists of two sensing elements–a velocity sensor and a temperature sensor that automatically corrects for changes in gas temperature.

When power is applied to the flow meter, the transducer electronics heats the velocity sensor to a constant temperature differential above the gas temperature and measures the cooling effect of the gas flow. The electrical power required to maintain a constant temperature differential is directly proportional to the gas mass flow rate.

Both sensors are reference-grade platinum resistance temperature detectors (RTDs). The platinum RTD wire is wound on a rugged ceramic mandrel for strength and stability. Steel-Trak sensors are, clad in a rugged, sealed 316 stainless steel encasement.
