Inline Mass Flow Meter - ChlorineTrak™ 760S

/

Mass Flow Meter Optimized For Chlorine Measurement

The ChlorineTrak™ 760S has been specifically designed to perform as an accurate and cost-effective mass flow measurement solution for chlorine injection processes found in typical waste-water treatment applications.

  • Specially designed Kynar® PVDF 1, 1.5, 2, 3, or 4 inch flow body with ANSI 150 LB RF flanges and 1” NPTF probe con¬nection offers economical corrosion resistance
  • Hastelloy® C sensors with 6” Hastelloy® C-127 probe and 1” Swagelock® NPT compression fitting to mate with the flow body
  • Integral or Remote electronics
  • Digital display (optional) with instantaneous and totalized flow

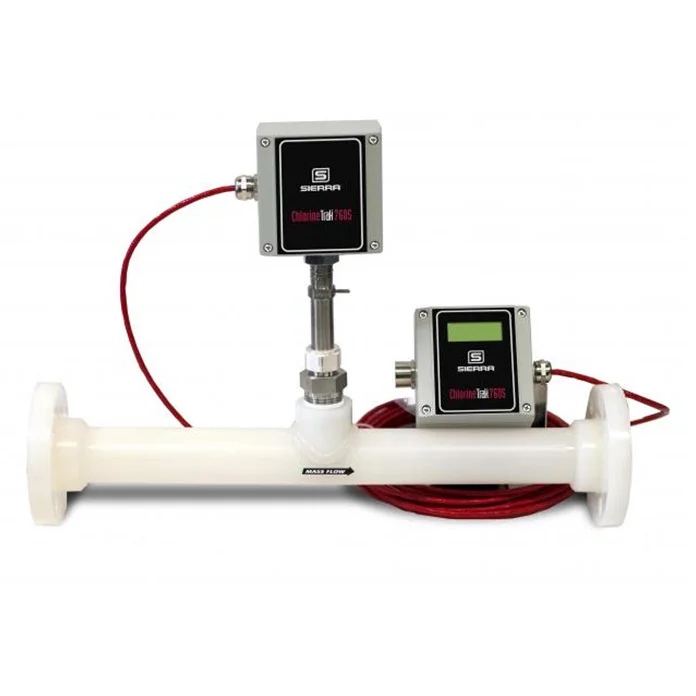

ChlorineTrak 760S Inline Mass Flow Meter

ChlorineTrak 760S Inline Mass Flow Meter
