Insertion Mass Flow Meter - BoilerTrak™ 620S BT

/

Thermal Mass Flow Meter Increases Boiler & Heater Efficiency

BoilerTrak™ is designed to provide an economical and easy to install solution for precise natural gas measurement to heaters and boilers to increase efficiency. The instrument also suited for compliance to new regulations for burning natural gas in commercial boiler applications.

The versatile microprocessor-based transmitter integrates the functions of flow-range adjustment, meter validation and diagnostics in a well-packaged probe-mounted NEMA 4X (IP65) housing. Mass flow rate and totalized flow, as well as other configuration variables, are displayed on the meter’s 2 x 12 backlit LCD display panel.

BoilerTrak™ also provides an optical/galvanic isolated 4-20 mA output, two alarm outputs, and one contact input for range or gas selection. The programmable transmitter is easily configured via RS-232, Sierra’s Smart Interface™ software, or with three push-buttons located on the instrument.

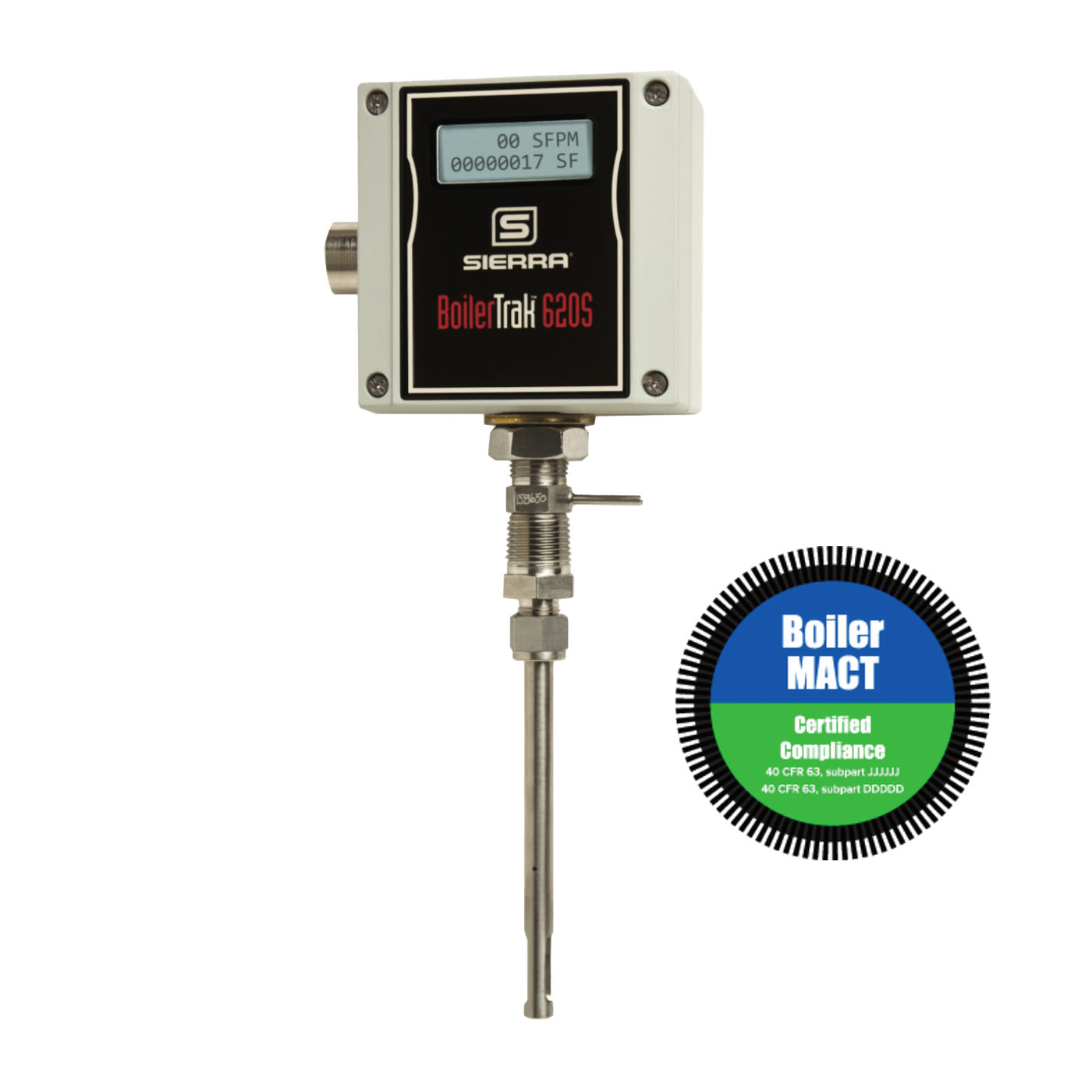

BoilerTrak™ 620S BT Mass Flowmeter
