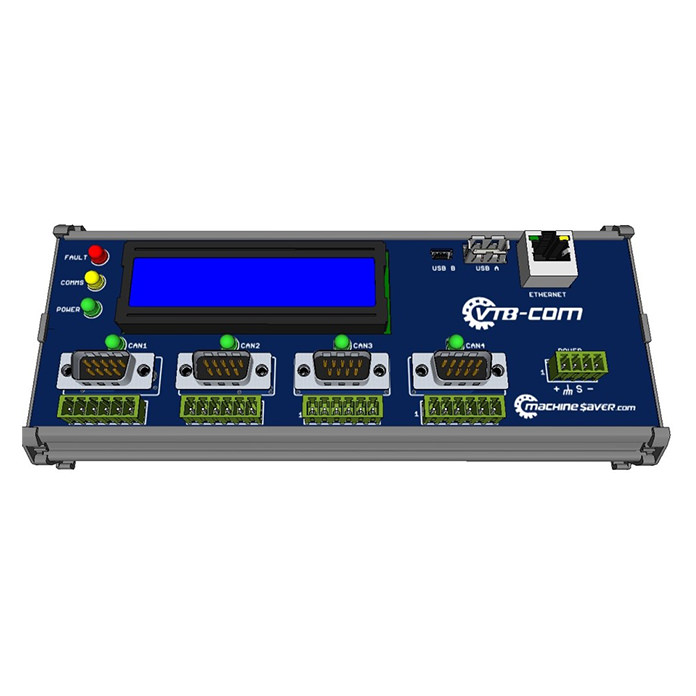

VTB-COM Communication Gateway

/

VTB-COM  is a communication gateway which monitors VTB-Sensors via Industrial CANbus network, log information from the VTB-Sensors and communicate the information to control systems (PLC, DCS, SCADA) or remote monitoring stations (PC)  using a variety of communications methods such as Ethernet, Modbus and USB.

Additional connection options are available such as: wireless, wifi, and cellular (GSM).

The VTB-COM acts as a CANbus master on 4 independent CANbus channels simultaneously, each CANbus is controlled by a dedicated controller chip.

Each CANbus channel can communicate with up to 24 different sensor devices attached at the same time. This makes it possible to run 96 different points to one VTB-COM communication gateway.

VTB-COM Communication Gateway

VTB-COM Communication Gateway

Featured
Machine Saver Warranty & Support

Machine Saver Inc. is committed to our customers with new innovative, cost effective, patented designs for machine monitoring and protection. We are proud of our product excellence and superior long life designs. With years of design, quality and manufacturing experience we stand behind our products with a standard three (3) year warranty with extended warranty available to five (5) years.

Machine Saver Inc. VTB-Sensor products are warranted against defects in material and workmanship for a period of three (3) years from the date of shipment.  Other Machine Saver products and packaged solutions provided by Machine Saver have a (1) year warranty from shipment or installation date when installed by Machine Saver solution provider.

Machine Saver Inc. at our choice will repair or replace products within a reasonable time upon prompt notice, and in any event within two (2) months of discovery during the warranty period, of any defect in material or workmanship, provided that the failure or damage has not been caused by misuse, neglect, abnormal operation condition, alterations or damage caused by disasters such as fire, flood, wind and lightning. Fuses, lamps, LCDs and calibration are specifically excluded from warranty. Shipping charges to return unit(s) for warranty repair or replacement are to be prepaid by the purchaser.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

In no case shall Machine Saver Inc. be liable for any special, incidental or consequential damages based upon breach of warranty, breach of contract, negligence, direct liability or any legal theory. Such damages include, but are not limited to, loss of profit, loss of savings or revenue, loss of use of the product or any associated equipment, downtime, the claims of third party including customers or injury to property.

Should service be required at the jobsite, Machine Saver Inc. will provide qualified technical personnel for installation, start-up, inspection and repair of our products. Charges for field service will be those in effect at the time that the service is required. The above are the purchaser’s exclusive remedies for breach of warranty.

Technical Support

Chat with us or call (502) 266-6640.

Technical Details

VTB-COM  Communication Gateway details:

  • LCD display and LED for local status and alerts
  • Monitor up to 96 VTB-Sensors on (4) independent CANbus channels
  • Communicate to control systems such as PLC,DCS, SCADA via Ethernet (10/100) Modbus TCP/IP
  • (1) USB host port,
  • (1) USB device port
  • Options available for wireless
  • VTB-Client- Freeware for Configuration and monitoring of live machine data from VTB-Sensors

VTB-COM  Specifications:

  • Power: 10-30 VDC, the VTB-COM will power the VTB-Sensors
  • Din rail mountable
  • CSA, cUL, IECEx (pending) Class 1 Div. 2
  • Dimensions: 8.03” x 3.5” x 2.0”
  • Temperature: -40C to +85C
/ /
