Self Contained IR Pyrometer - Metis Series
/ Process Sensors CorporationThe Metis Self Contained series of IR Pyrometers was developed for precision on-line process temperature measurement applications.
By utilizing digital signal processing, the Metis series exceeds standard analog pyrometers as far as accuracy, repeatability and wide temperature ranges are concerned.

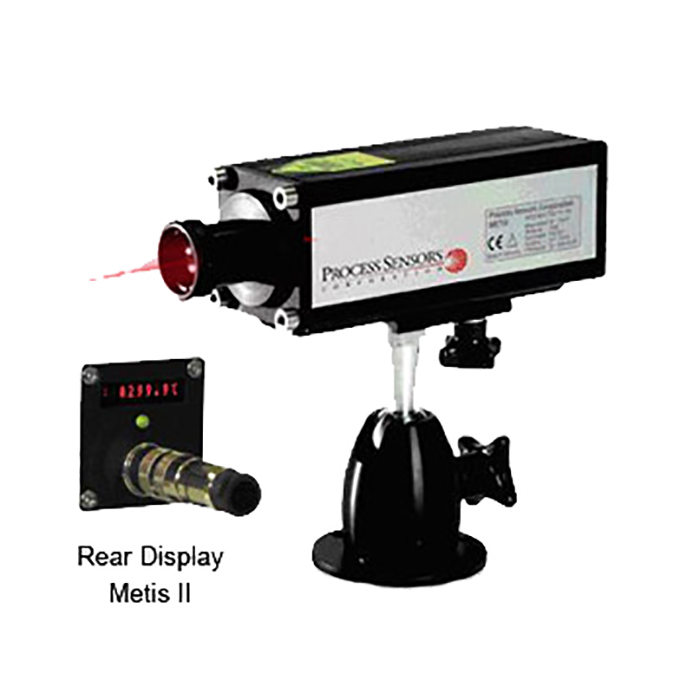

Precision, adjustable focusable optics allows the Metis to pinpoint very small targets and features advanced sighting capabilities such as through the lens, laser or video. A variety of spectral responses are available for addressing the needs for specific temperature measurement applications. i.e.: Metals, Glass, Semiconductor, Vacuum, Ceramics, Plastics, Composites, etc.
The aluminum extruded housing (IP65) with mounting adaptation allows for easy installation onto a swivel base, adjustable bracket or within a companion heavy duty water cooling jacket for use in harsh environments.
Metis-Pyrometers provide analog & digital signals such as 4-20mA, 0-20mA, RS232, RS485 & Profibus. Optionally the product line offers integrally a bright rear LED display, dual relays or fiber optic versions for use in high temperature environments, use in tight spaces or in high magnetic RF fields.
Pyrometer Series Metis MS with silicon and Metis MI with indium gallium arsenide detector operate at the near end of the infrared spectrum.
The pyrometer model Metis MY 84 is ideally suited to all types of applications like measurement of organic materials, painted metal surfaces, rubber, paper, textiles and thicker plastics.
The pyrometer model Metis MY81 with spectral response between 8 und 10 µm can be used for applications like measurement of organic materials, painted metal surfaces, rubber, paper, textiles and thicker plastics.
The narrow band model Metis MY80 was developed for non contact temperature measurement of thin polyester films and all kind of fluorocarbon-plastics .
The Pyrometer Series Metis MY51 with pyroelectrical detector operates in a narrow band around 5.14 micrometer, where glass above 1 mm thickness is completely opaque.
Process Sensors Metis models MY45 & MY46 pyrometers measure temperature in the high absorption band wavelength region, operating in the mid, 4 micron spectral range.
Pyrometer Series Metis MB utilizes lead selenide detectors with filtered spectral response at relative short infrared wavelengths and are often used to measure metal surfaces above 50°.
Pyrometer Series Metis MP utilizes lead sulphide with filtered spectral response at relative short infrared wavelengths, and are often used to measure metal surfaces above 75°C (Metis MP).
Pyrometer Series Metis M18 with indium gallium arsenide detector operates at the near end of the infrared spectrum (1.8u).
Pyrometer Series Metis MS with silicon and Metis MI with indium gallium arsenide detector operate at the near end of the infrared spectrum.
Pyrometer Series Metis MQ utilizes lead sulphide with filtered spectral response at relative short infrared wavelengths and are often used to measure metal surfaces above 75°C (Metis MQ).
Pyrometer Series Metis MQ utilizes lead sulphide and Metis MB lead selenide detectors with filtered spectral response at relative short infrared wavelengths, and they are therefore often used to measure metal surfaces above 75°C (Metis MQ) or above 50° (Metis MB).
