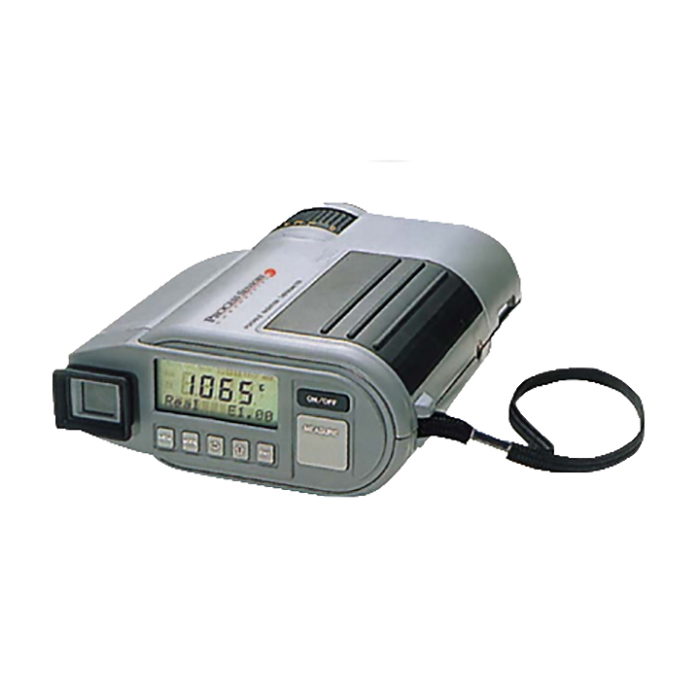

Digital IR Pyrometer - PSC-90
/PSC-90 Series is a versatile non-contact, portable digital infrared thermometer with precision, focusable optics for accurate temperature measurement with data logging capabilities. It can also be mounted on a tripod for continuous monitoring including 0 to 1 volt VDC output.
- Sharp adjustable focus with precision optics
- High accuracy/repeatability
- Measures wide temperature range 1112°F to 5432°F (600° to 3000°C)
- Read temperature in viewfinder or on large LCD display
- Communication software (optional)
- Data logging up to 1000 temperature readings
- Built-in close focus lens attachments for ultra small spots
Digital IR Pyrometer - PSC-90
Product Information
PSC-90 Series is a versatile non-contact, portable digital infrared thermometer with precision, focusable optics for accurate temperature measurement with data logging capabilities. It can also be mounted on a tripod for continuous monitoring including 0 to 1 volt VDC output.
The PSC-90 Series offers a wide temperature measuring range of 1112°F to 5432°F (600°C to 3000°C) and features a digital display of the measured temperature in both the viewfinder and on an LCD display on the back of the instrument. With the provided RS-232C Serial port the stored data is easily transmitted to a personal computer.
Real time, peak, average, and valley measurement modes are easily selectable and a maximum of 1000 data points can be stored either manually on demand, or at programmed intervals. The analysis of the temperature data can be executed easily with the optionally available PSC-VXH2E Windows compatible software.
