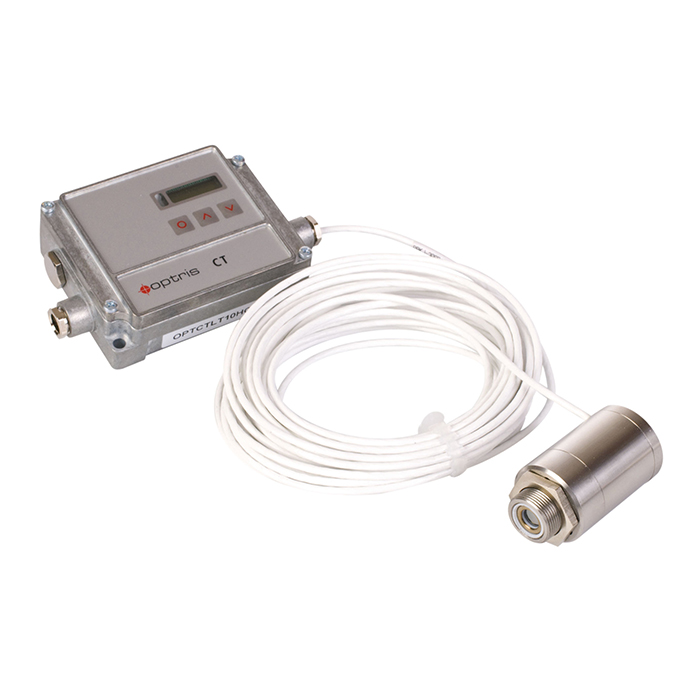

Infrared Sensor Series PSC-SSS
/Precise non-contact measurement of plastic materials from 0 - 710°C / 32 - 1310°F.
- Accurate temperature measurement of thin plastic film materials like PET, PU, PTFE, PA
- Rugged and usable up to 85°C ambient temperature without cooling
- Separate electronics with easy accessible programming keys and LCD backlit display
- Selectable analog output: 0/4 - 20 mA, 0 - 5 V, 0 - 10 V, thermocouple type K or J
- Optional USB, RS485, RS232 interface, relay outputs (2x optically isolated), CAN-Bus, Profibus DP, Ethernet
Infrared Sensor Series PSC-SSS
Technical Details
| General Specifications | |
|---|---|
| Environmental rating | IP 65 (NEMA-4) |
| Ambient temperature | sensing head: -20 - 85°C electronics: 0 - 85°C |
| Storage temperature | sensing head: -40 - 85°C electronics: -40 - 85°C |
| Relative humidity | 10 - 95%, non condensing |
| Vibration (sensor) | IEC 68-2-6: 3 G, 11 - 200 Hz, any axis |
| Shock (sensor) | IEC 68-2-27: 50 G, 11 ms, any axis |
| Weight | sensing head 200 g (with massive housing) electronics 420 g |
